The Blitz KR3 Road Legal Buggy

The Brand NEW Blitzworld KR3 Buggy

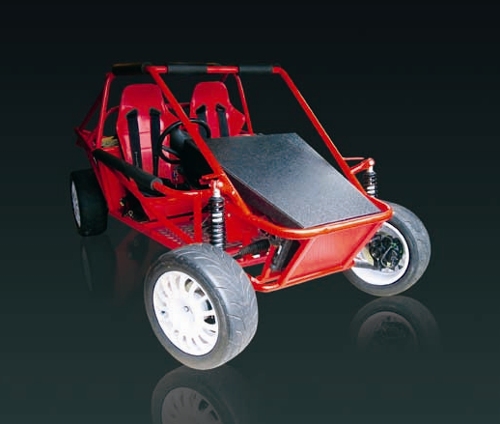

KR3 Two Seater Road Legal Buggy

Due to the popularity of the Blitz KR2, we have now upgraded this model to the KR3 that offers you a twin seat road legal buggy. The KR3 uses the very popular Fiat Seicento as the donor car and offers a very reliable and robust engine with over 45 mpg, with a top speed in excess of 110 mph (with 900cc engine), low road tax and fully comprehensive insurance from £125 makes this a great run around buggy.

The KR3 is our latest road legal buggy to our range, and already has proven popular with order books filling up during the initial design stage. We are offering this car in kit form or factory built by Blitzworld, with several engine options available including custom builds, please call for details.
The Chassis

The design for the KR3 is significantly different than the KR2 with more side and front impact protection. The buggy chassis is made in 3 parts; a nose crumple zone, the driver cage and the rear engine bay. Due to the multi engines available the KR3 has being designed to protect the driver in the event of a high-speed crash both on and off road. The roll cage is made from 1.25″ NB CDS (cold drawn seamless) tube that is lightweight and very strong. The base section is constructed from 40×40 box section forming a very strong chassis base. The engine sub frame complete with axels bolts directly onto the main chassis, offering a removable engine bay.

The buggy also has a steel front bulkhead to mount the pedal box and brake servo and gives protection to the front mounted radiator. A rear firewall is fitted with horizontal tubular cross member for added driver safety and protection.

The floor is made from aluminium checker plate and is stepped to raise the driving position, allowing large seats to be fitted with adjusting runners if required.

Engine options

The standard Fiat Seicento comes with a 900cc or 1100cc engine. The 900cc engine offers very low road tax and insurance with excellent MPG. The KR3 is also designed to take virtually any engine like the KR2 including bike engines that will fit into the removable rear sub frame making engine change and modification simple.

Other engines available for the KR3 include the popular Rover K-Series, including the 1.4, 1.6 and 1.8 VVC engine. The 1.8 litre VVC engine is capable of over 150mph, and insurance from as little as £150 fully comprehensive makes this one little buggy people will think twice about when it passes them on the road.

Current engine sub frames available for KR3:

· Fiat Seicento 900cc

· Fiat Seicento Sporting 1100cc

· Rover K-Series 1400cc (single point injection)

· Rover K-Series 1800cc (multi point injection)

Putting the KR3 on the road

We know you have all sorts of buggy-related fantasies. Who wouldn’t want to use it to navigate hallways of cheap hotels or race on it on the freeway? However, if you want to put your KR3 buggy on the road you will have to take the buggy to a local SVA centre, where you will be issued with the relevant documentation to put the buggy on the road and obtain a new number plate and chassis number.

· SVA (single vehicle approval) Test cost about £125

· MOT (ministry of transport) Test cost about £55

· Fully Comprehensive Insurance from £125 (using Fiat 900 or 1100cc engine)

· Road Tax (6 months) cost about £65

Building the KR3

To build the KR3 buggy for on or off road use you will need the following:

1) KR3 chassis kit

2) Fiat Seicento donor car (900 or 1100cc)

3) A build kit

4) Painting

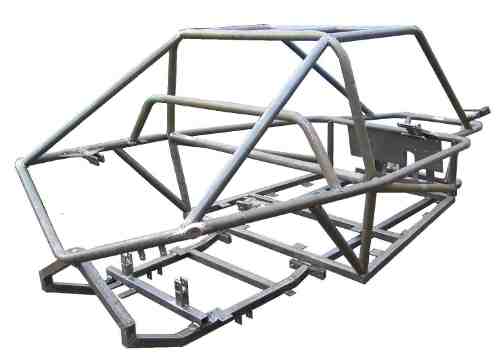

1) KR3 Chassis Kit

The Blitzworld chassis is made from CDS tube and comes complete with the detachable rear sub frame (please select engine to be used when ordering).

· KR3 TWIN SEAT welded chassis

· Detachable rear sub frame – for multi engine

· Aluminium split level checker plate floor

· Full colour build manual

· Fixing bolt pack

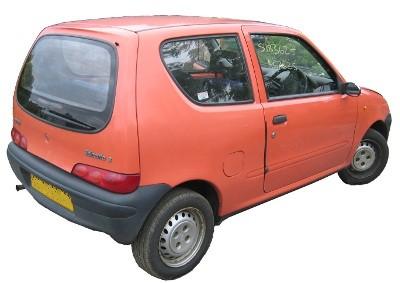

2) Donor Car (Fiat Seicento)



The Fiat Seicento is a very popular car and can be picked up for as little as £200 (accident damaged). See Auto trader and ebay are good places to look for donor cars. The following list is all the parts you require from the donor car.

Fiat Seicento

· Car Identification for registering (for road use only)

· Front suspension including hubs, arms and struts

· Complete engine, gearbox

· Complete wiring loom & ECU

· Complete steering assembly including steering wheel

· Pedal box assembly & brake servo

· Gear leaver assembly

· Petrol tank fuel pump

· Wheels & tyres

· Handbrake assembly

· Dash pod clocks

· Front seats if use existing & seatbelts

Extra Items required

· 2nd set of front hubs, lower arms, typical cost £40 from scrap yard.

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Front Facer

· Sealed Battery

· Aluminium 5-gallon petrol tank

· Chrome tuned exhaust

· K&N air filter kit

· Twin bucket seats

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Front Facer

· Sealed slim line battery

· Aluminium 5-gallon petrol tank

· Stainless steel exhaust

· K&N air filter kit

· Twin bucket seats

· Williams 4 point harnesses

· Carbon fibre look mudguards

· Full SVA light kit

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Front Facer

· Sealed slim line battery

· Aluminium 5-gallon petrol tank

· Chrome tuned exhaust

· K&N air filter kit

· Twin bucket seats

· Williams 4 point harnesses

· Carbon fibre look mudguards

· Full SVA light kit

· Roll Bar padding

· Compomotive alloy road wheels & Toyo proxy R888 tyres

4) Painting

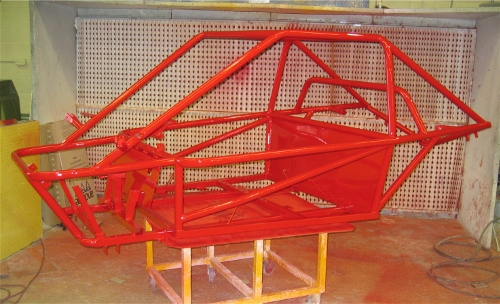

Blitzworld offer a factory finish two pack painting of your chassis so that you can have your chassis delivered in the colour / colours of your choice, including metallic paint.

· Standard Gloss paint finish

· Metallic paint finish

5) Factory built – Blitzworld ready to drive buggies

Blitzworld are now building the KR3 complete for Off road specification and Road legal use, the two specifications are as follows;
Off road KR3 buggy

The off road standard KR3 buggy built by Blitzworld is ready to drive away with all donor parts cleaned painted, replaced / repaired as required. The donor wheels are used, but mud and snow tyres can be fitted at a later date if required.
Specification

· KR3 Chassis with Fiat Seicento 900cc engine bay

· Fiat Seicento 900cc donor car & engine

· Two pack Painted – any colour

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Front Facer

· Sealed Battery

· Aluminium 5-gallon petrol tank

· Chrome tuned exhaust

· K&N air filter kit

· Twin bucket seats

· 4 point race harnesses
Road Legal KR3 buggy

Blitzworld are now building the KR3 buggy road legal to order. The buggy comes reay to drive away with the addition of TAX and Insurance. Blitzworld SVA and MOT the buggy and the standard specification KR3 road legal buggy complete is as follows;

· KR3 Chassis with Fiat Seicento 900cc engine bay

· Fiat Seicento 900cc donor car & engine

· Two pack Painted – any colour

· Fully adjustable all round coil over suspension

· Accelerator, Clutch and Gear linkage cables

· Front Facer

· Sealed Battery

· Aluminium 5-gallon petrol tank

· Chrome tuned exhaust

· K&N air filter kit

· Twin bucket seats

· 4 point race harnesses

· Carbon fibre look mudguards

· Full SVA light kit

· Roll Bar padding
